What Are the Structure and Performance of the High-speed Checkweigher?

What Are the Structure and Performance of the High-speed Checkweigher?

Issue Time:2021-11-30
the structure and performance of the high-speed checkweigher
High-speed checkweigher is also called online checkweigher, weight sorting scale, and weight sorting machine. It is a kind of weight detection, upper and lower limit judgment used in automated assembly lines and logistics conveying systems, or automatic inspection based on whether the product is qualified or not.

High-speed checkweighers are widely used in online inspections in the pharmaceutical, food, toy, and hardware industries. In addition, it can directly replace manual weighing to improve production efficiency and reduce labor to reduce costs. Let's learn about the structure and performance of the high-speed checkweigher.

Structure and composition

The high-speed checkweigher consists of three parts: the front conveyor hook, the middle weighing mechanism, and the back end powder sorting mechanism.

1. Front-end conveying mechanism

The product to be measured is transferred to the weighing mechanism, on the one hand, an initial speed is given to the object so that it can reach stability more quickly after entering the weighing mechanism; on the other hand, it can isolate the front material and ensure the accuracy of measurement.

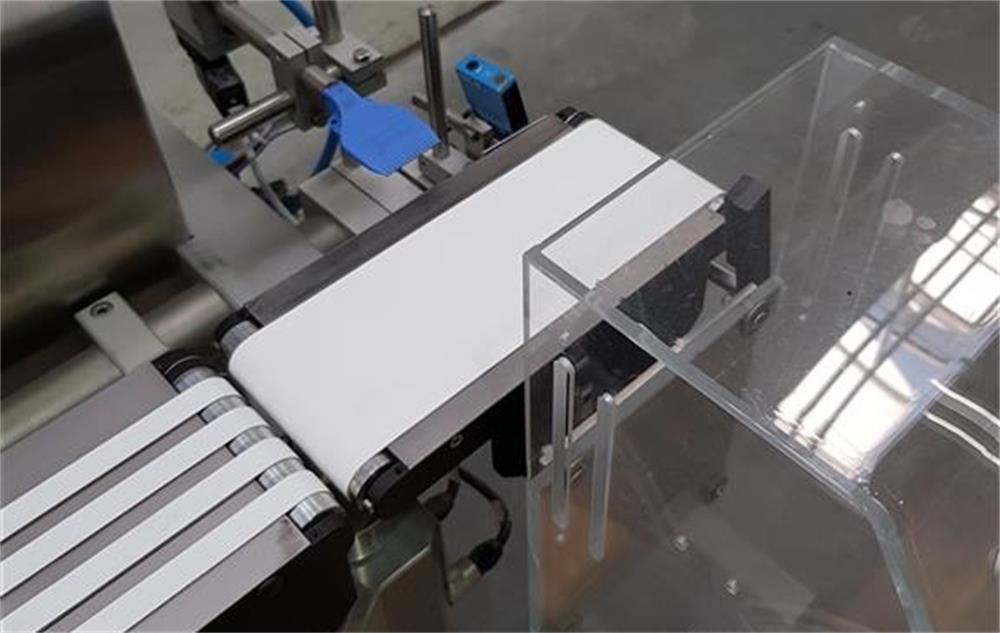

2. Intermediate weighing mechanism

This part is a key part of the entire mechanical system, and its structural design and installation accuracy directly affect the measurement accuracy of the system. It is composed of conveying motor, photoelectric monitoring part, and load cell.

3. Back-end sorting organization

This part is the action part of sorting, which is composed of conveying part, pneumatic valve, hopper, and so on. Complete the rejection and sorting of the unqualified part of the object. The rejection method can be set to blow, pushrod, shift rod, drop, and other methods.

Performance

1. The operation interface is clear and simple, intuitive reading of numbers, statistical functions of all data, system parameters, and formula parameter settings are password protected.

2. It can operate online for a long time, has good repeatability, and maintains accuracy and accuracy, reduces errors, and ensures improved production efficiency.

The automatic checkweigher is based on dynamic weighing technology and realizes the functions of automatically transporting the products "in motion" to the weighing platform for weighing and automatically classifying and rejecting them.

Under the background of "science and technology is the primary productivity", with its advantages of full automation, high precision, 100% detection rate, simple operation and maintenance, and complete functions, the automatic checkweigher provides quality assurance for the food, chemical, and battery industries, and it also can reduce costs and improve production efficiency.

The automatic sorting scale designed and manufactured by Syndar is specially designed to handle all types of products and packaging, from bags, cans, pallets, and cartons, everything is available. If you want to obtain further services, you can send us your needs, and we will give you a satisfactory answer as soon as possible.

As a professional manufacturer of weighing and inspection systems, we have become a leader in the industry with our excellent R&D technology and leading manufacturing technology. We uphold the attitude of putting customers' needs first, and can continuously optimize and adjust our design schemes according to user needs and feedback to meet different production needs. If you are interested in our products, please contact us immediately!
